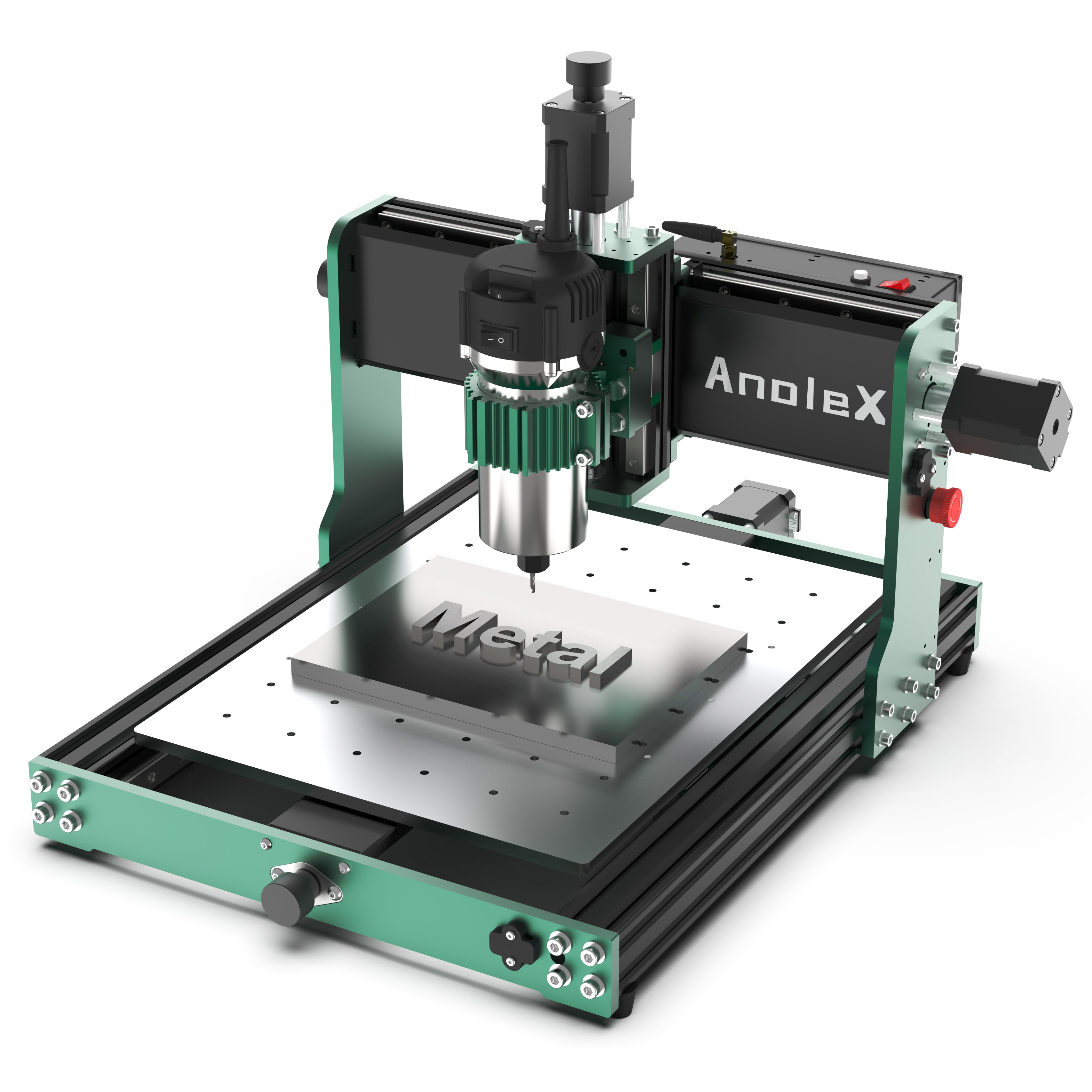

AnoleX CNC Router Machine 3030-Evo Max, All-Metal XYZ Axis Dual Steel Linear Guides with 800W Trim Router

Features and Upgrades:

1. Upgraded Φ65mm Trim Router:
   - 800W Trim Router with 6-speed settings (8000-24000 RPM).
   - Software-controlled start/stop functionality.
   - Speed adjustment requires manual dial adjustment (not software-controlled).

2. Dual Linear Rails and Lead Screws:
   - Each axis (X, Y, Z) is equipped with MGN15 dual linear rails and T8 lead screws (1204 ball screw upgrade kit coming soon).

- POM anti-backlash ball screw nut, no metal noise, adjustable gap, can effectively reduce backlash.
   - Enhances precision, rigidity, and load capacity for metal cutting.
   - Improved X&Y axis dust protection to prevent debris from affecting performance.

3. Grbl_ESP32 Firmware (GRBL 1.3a):
   - Runs on the latest GRBL 1.3a firmware, ensuring stability and compatibility.
   - Supports advanced features:
     - Laser engraving.
     - 4th axis (Coming soon).
     - M07/M08 coolant control.
     - Closed-loop stepper motor(Coming soon).
     - 3-pin Touch Probe.

4. Nema 17 Stepper Motors:
     - 3030 Evo Max employs a higher-torque 650mN·m motor compared to the common Nema17 motor (420mN·m), significantly enhancing its capability to process metallic materials. This increased torque output allows the ball screw and linear guide systems to fully realize their performance potential.

5. WiFi & ESP3D Web UI:
   - Built-in 32-bit MCU with ESP3D Web UI for browser-based control.
   - Control the machine via PC, smartphone, or tablet on the same WiFi network. No additional software installation is required. Note: Only one device can control the machine at a time.

6. Customizable Macro Buttons:
   - The default macro button function is **Homing**
   - Can be reprogrammed to perform tasks like Pause/ Stop/ Reset, or execute G-code from an SD card.
   - Ideal for repetitive tasks and improving batch production efficiency.

7. Comprehensive Accessories:
   - Includes XYZ dual limit switches, Home switch, Emergency stop switch, Z probe tool, and an 800W trim router with ER11-1/8" collet.

8. Software and OS Compatibility:
   - Compatible with Windows, Linux, and Mac.
   - Works with popular GRBL-compatible software like UGS, Fusion360, VCarve, Easel, and Lightburn.

9. Easy Assembly:
   - Pre-assembled major components and clear cable management.
   - Comes with a detailed paper user manual and assembly& demo video for quick setup.

Use Cases:

- Precision Metal Cutting: Ideal for high-rigidity machining tasks.
- Engraving and Carving: Supports laser engraving and detailed carving.
- Batch Production: Customizable macro buttons and SD card support streamline repetitive tasks.
- Hobbyist and Professional Use: Suitable for both beginners and advanced users.

Additional Resources:

- ESP3D Web UI GitHub: https://github.com/luc-github/ESP3D-WEBUI
- GRBL Firmware Documentation: Refer to GRBL-ESP32 documentation for advanced configurations.
