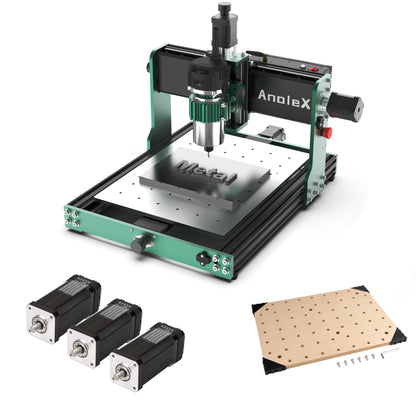

AnoleX CNC Router Machine 3030-Evo Max + Nema17 Closed Loop Motor Kit +MDF Spoilboard

Note: The Closed Loop Motor kit does not come pre-assembled and requires you to upgrade and assemble it yourself.

Features and Upgrades:

• [800w Trim Router & Upgradeable 1.5kw Spindle ] Comes with 800W trim router & Er11-1/8" collet with 6-speed settings (8000-24000 RPM). Can easily cut metals such as aluminum, copper, etc. Software-controlled run/stop functionality, with speed adjustment requiring manual dial control. Comes with ⌀65mm spindle mount, it can be directly upgraded to our 1.5kw spindle kit for greater cutting capacity, precision and improved efficiency
• [Dual Linear Guides & Upgradeable Ball Screws] Each axis (X, Y, Z) is equipped with MGN-15 dual linear guides and T8 lead screws. It has high precision, high rigidity and high load for metal cutting, and improved dust protection for X and Y axes. 1204 ball screw kit available for upgrade.
• [Nema 17 stepper & Upgradable Closed-loop Motor] The 3030-Evo Max employs a higher-torque 650mN·m stepper motor compared to the common Nema17 motor (420mN·m), significantly enhancing its capability to process metallic materials. Upgradeable Nema17 closed-loop motor to obtain greater torque and achieve no step loss.
• [Easy Assembly & Upgradeable 3060 Table] Major components pre-assembled with clear cable management, accompanied by a detailed paper user manual and assembly/demo video for quick setup. The 3060 extension table base can be upgraded. The steps are simple, just remove the original base and replace it.
• [Grbl_ESP32 Firmware (GRBL 1.3a)] Optimized 32-bit control board, runs on the latest GRBL 1.3a firmware instead of the other GRBL1.1f, , supporting advanced features such as laser engraving, 4th rotation axis, M07/M08 coolant system control, closed-loop stepper motor, and 3-pin touch probe.
• [Customizable Macro Buttons & WiFi] Built-in 32-bit MCU with ESP3D Web UI, enabling control via PC, smartphone, or tablet without USB cable. Macro button defaul is homing, reprogrammable for tasks like pause/stop/reset or executing G-code from an SD card.
• [Software & Fully Functional] Compatible with Windows, Linux, and Mac, supporting GRBL-compatible software such as UGS, Fusion360, VCarve, Easel, and Lightburn etc.. Includes XYZ dual limit switches, home switch, emergency stop switch, Z probe tool.

Use Cases:

- Precision Metal Cutting: Ideal for high-rigidity machining tasks.
- Engraving and Carving: Supports laser engraving and detailed carving.
- Batch Production: Customizable macro buttons and SD card support streamline repetitive tasks.
- Hobbyist and Professional Use: Suitable for both beginners and advanced users.

Additional Resources:

- ESP3D Web UI GitHub: https://github.com/luc-github/ESP3D-WEBUI
- GRBL Firmware Documentation: Refer to GRBL-ESP32 documentation for advanced configurations.

Resource Files

• • [Software]
  • [Test G-code]
  • [User Manual]
  • [Videos]
