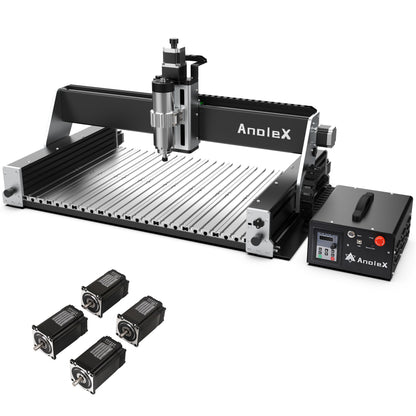

AnoleX CNC Router Machine RX6040+ Closed-loop Motor

AnoleX CNC Router Machine RX6040+ Closed-loop Motor

$2,148.00 $2,748.00

AnoleX CNC Router Machine RX6040 with 1.5KW Air Cooled Spindle, XYZ Axis Dual Steel Linear Guides & 1204 Ball Screws (Voltage): 110V

110V
220V

Product variants

In stock, ready to ship

Need help?

Pairs well with

AnoleX CNC Router Machine RX6040+ Closed-loop Motor

110V

$2,148.00 $2,748.00

Description

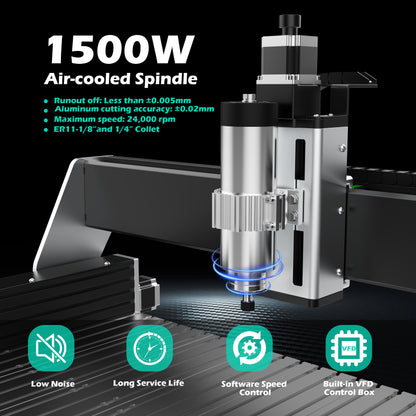

[Φ65mm 1.5kw Spindle] 1500w & Er11-1/8" &1/4" collet Max. 24000 RPM. Software-controlled run/stop functionality, with speed adjustment requiring manual dial control. More powerful metal cutting ability and work efficiency, easily supports 1/4" end milling, and the processing accuracy can reach 0.02mm
[Dual Linear Rails & Ball Screws] Each axis (X, Y, Z) comes with HGH-15 dual linear rails and 1204 ball screws. Enhances precision, rigidity, and load capacity for metal cutting, with improved dust protection for the XYZ axes. Repeat positioning accuracy is within ±0.005mm.

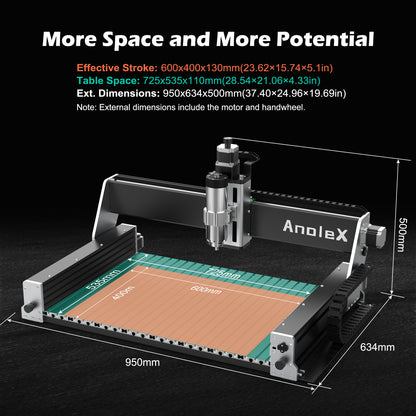

[Full Metal Design] The work table is made of full metal aluminum alloy to increase the stability and rigidity of the machine. The effective processing area is 600*400*130mm. The whole machine weighs 92.6 pounds (with controlbox), with absolute rigidity and stability.

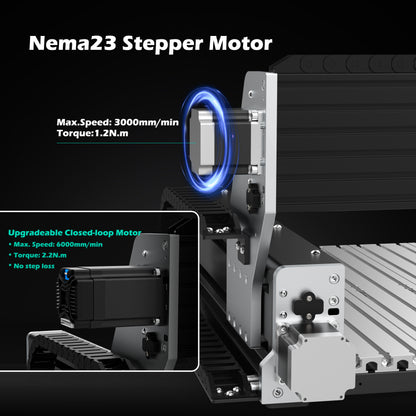

[Nema 23 Motor and Upgradeable Closed-Loop Motor] The XYZ axes use Nema 23 stepper motors (2.8A, 1.2N.m torque), paired with ball screws, linear guides, and a 1.5kW spindle system, making it easy to cut metals such as aluminum, brass, steel, wood, and other materials. The closed-loop motor can be upgraded for greater torque and no step loss.
[Customizable Macro Buttons & WiFi] Built-in 32-bit MCU with ESP3D Web UI, enabling control via PC, smartphone, or tablet without USB cable. Macro button defaul is homing, reprogrammable for tasks like pause/stop/reset or executing G-code from an SD card.

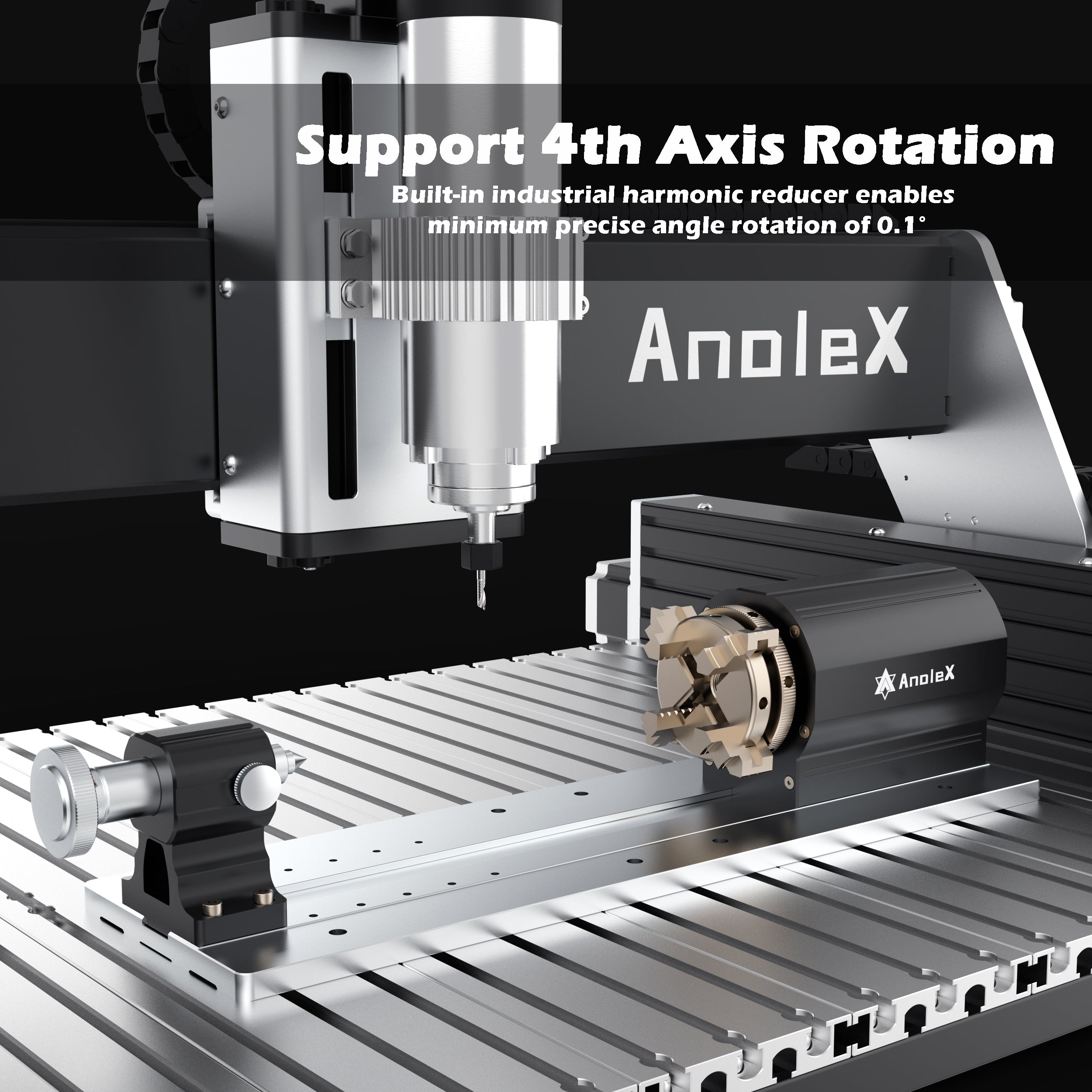

[Grbl_ESP32 Firmware (GRBL 1.3a)] Optimized control board, runs on the latest GRBL 1.3a firmware, supporting advanced features such as laser engraving, 4th axis (rotary axis), M07/M08 coolant system control, closed-loop stepper motors, and a 3-pin touch probe.
[Software & Fully Functional] Compatible with Windows, Linux, and Mac, supporting GRBL-compatible software such as UGS, Fusion360, VCarve, Easel, and Lightburn etc..Includes XYZ dual limit switches, home switch, emergency stop switch, Z probe tool.
[Easy Assembly and User Support] Major components pre-assembled with clear cable management, accompanied by a detailed PDF manual for quick setup.
